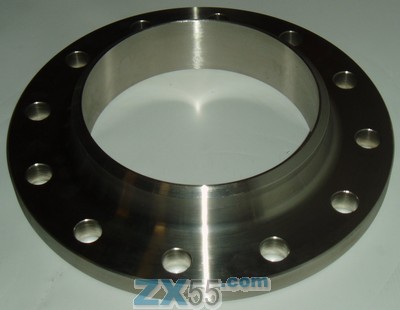

The images displayed are for illustrative purposes only and may not represent the exact product.
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | ||||||||
| A | B | C | D | E | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Diameter at Weld Bevel | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 8 | 8.63 | 36.00 | 7.63 | 2.75 | 6.62 | 24.00 | 27.62 | 27.25 | 12 | 32.00 | 230.00 | |
| mm | 219.10 | 914.40 | 193.67 | 69.85 | 168.10 | 609.60 | 692.10 | 692.10 | 41.10 | 812.80 | |||
