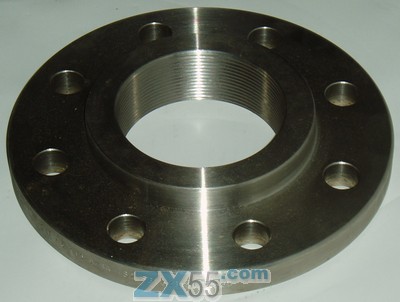

The images displayed are for illustrative purposes only and may not represent the exact product.
| Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||||
| DN | PN | A | C | D | F | R | G | X | H | I | J | ||
| Overall Diameter (mm) | Flange Thickness (mm) | Overall Length (mm) | Hub Diameter (mm) | Corner Radi(mm) | Face Diameter (mm) | Face Height (mm) | Number of Holes | Bolt Hole Diameter (mm) | Bolt Size | PCD: Diameter of Circle of Holes (mm) | |||
| 125 | 16 | 250.00 | 22.00 | 44.00 | 168.00 | 6.00 | 188.00 | 3.00 | 8 | 18.00 | M16 | 210.00 | 6.10 |
