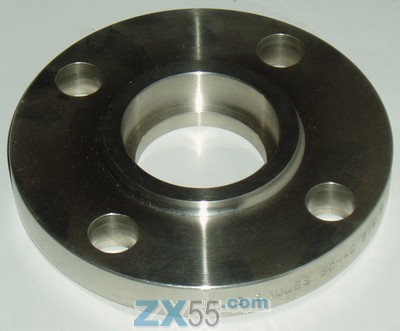

The images displayed are for illustrative purposes only and may not represent the exact product.
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||||
| A | B | C | D | E | K | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Socket Diameter | Depth of Socket | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 3 | 3.50 | 8.25 | 0.00 | 1.25 | 1.81 | 90.70 | 0 | 117.30 | 127.00 | 8 | 6.62 | 7.06 | |
| mm | 88.90 | 209.50 | 0.00 | 31.75 | 46.00 | 90.70 | 117.30 | 127.00 | 22.30 | 168.10 | 20.00 | |||
