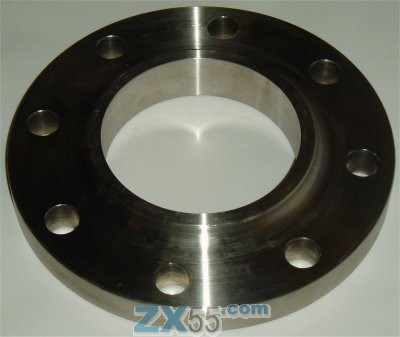

The images displayed are for illustrative purposes only and may not represent the exact product.
| Pipe | Flange Data | Hub | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||
| A | B | C | D | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 3 | 3.50 | 8.25 | 3.57 | 1.12 | 1.69 | 4.62 | 5.00 | 8 | 6.62 | 5.85 | |
| mm | 88.90 | 209.50 | 90.70 | 28.40 | 42.90 | 0.00 | 127.00 | 22.40 | 168.10 | |||
