3.00" ASA 300 PSI Raised Face Blind 316L B

Name: 3.00" ASA 300 PSI Raised Face Blind 316L B
SKU: GA38080
Price: 852.85 GBP
Availability: InStock

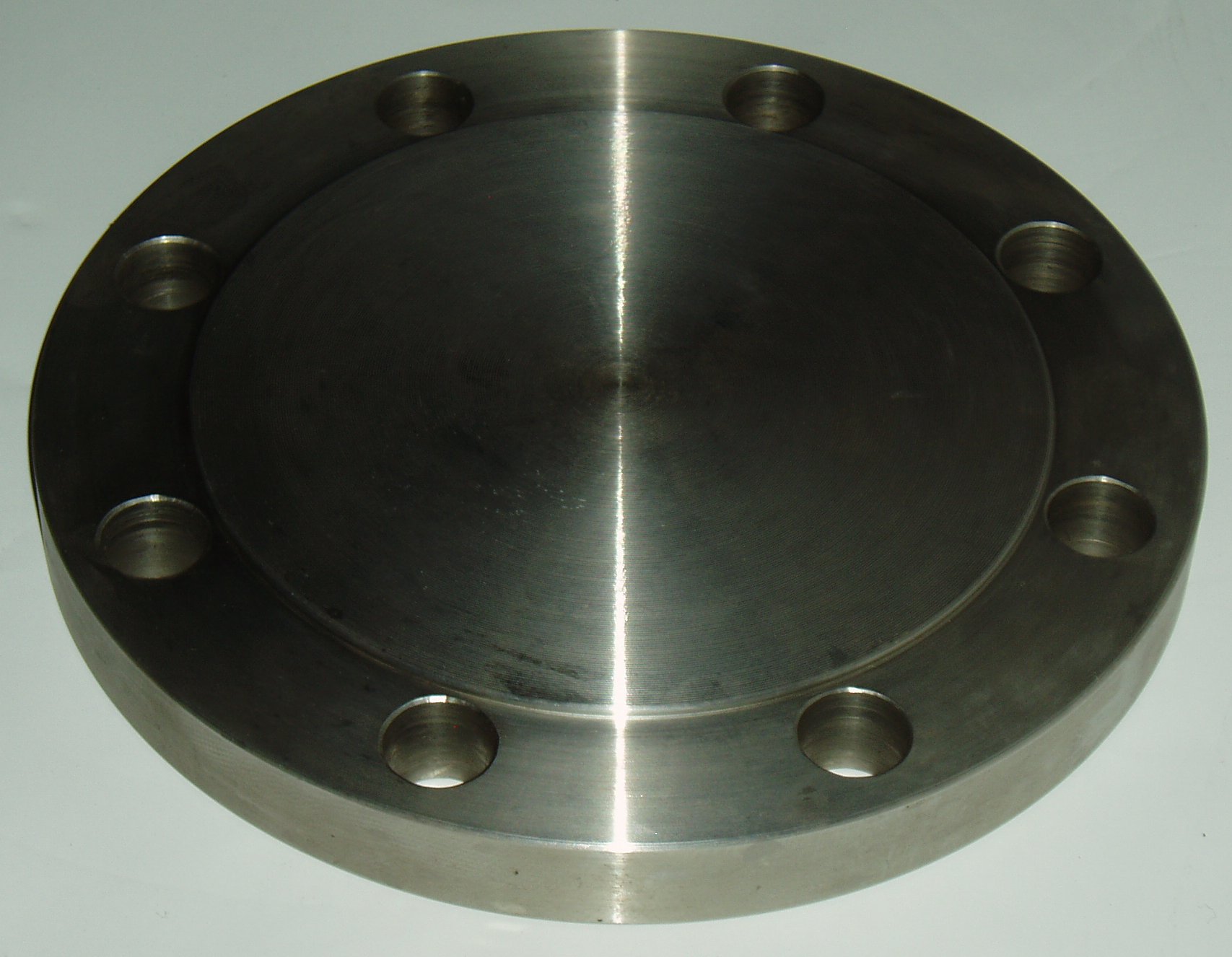

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:

GA38080

Quick Find:

ZX4046

Category:

Stainless Steel Flanges

Standard:

ASA (from BAR)

Holes:

DN:

NPS:

Weight:

6.81

Grade:

316 / 316L

Pressure:

300 LB

Face:

Raised Face

Fitting:

Blind - Raised Face

Product Category:

300 LB ANSI B16.5 Blind Flange

Type:

Blind - Raised Face

In Stock @ £ 852.85

Pipe			Flange Data		Raised Face	Drilling Data			Approximate Weight (Kg)
Pipe			A	C	G	H	I	J
Units	Nominal Pipe Size	Outside Diameter	Overall Diameter	Flange Thickness (min)	Face Diameter	Number of Holes	Bolt Hole Diameter	PCD: Diameter of Circle of Holes
In	3	3.50	8.25	1.12	5.00	8		6.62	6.81
mm	3	88.90	209.50	28.40	127.00	8	22.30	168.10	6.81
