2.50" PN40/101 Raised Face Slip On 316L

BS 4504 (Code 101) PN40 Slip On Flange

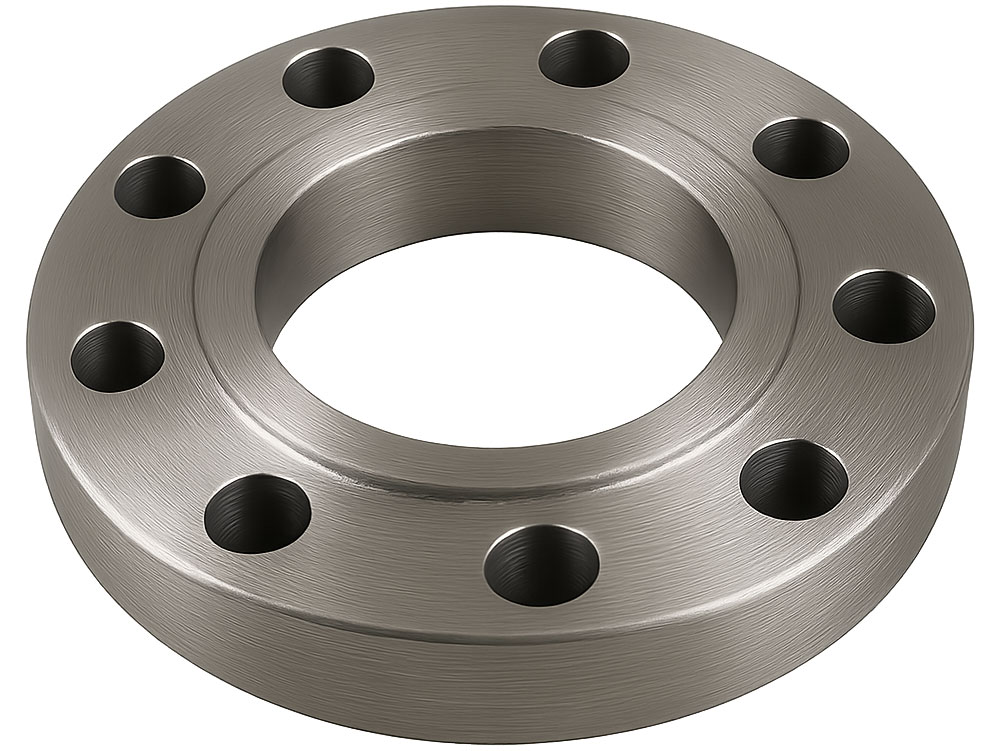

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
FA403065
Quick Find:
ZX3477
Category:
Stainless Steel Flanges
Standard:
BS4504
Holes:
8
DN:
65
PN:
PN40
NPS:
2.5
Weight:
3.00
Grade:
316 / 316L
Pressure:
40 Bar (PN40)
Face:
Raised Face
Fitting:
Slip On - Raised Face
Product Category:
BS 4504 (Code 101) PN40 Slip On Flange
Type:
Slip On - Raised Face
Out of Stock @ £ 50.40
Tell a friend about this site or product

BS 4504 (Code 101) PN40 Slip On Flange

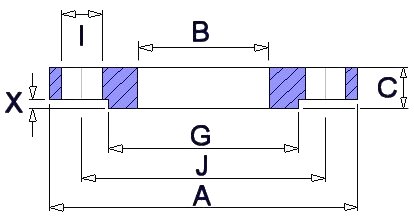

  Flange Data Raised Face Drilling Data Approximate Weight (Kg)
DN PN A B C G X H I J
Overall Diameter (mm) Inside Diameter (mm) Overall Length (mm) Face Diameter (mm) Face Height (mm) Number of Holes Bolt Hole Diameter (mm) Bolt Size PCD: Diameter of Circle of Holes (mm)
2+1/2 185.00 78.00 22.00 122.00 3.00 8 18.00 M16 145.00 3.00
