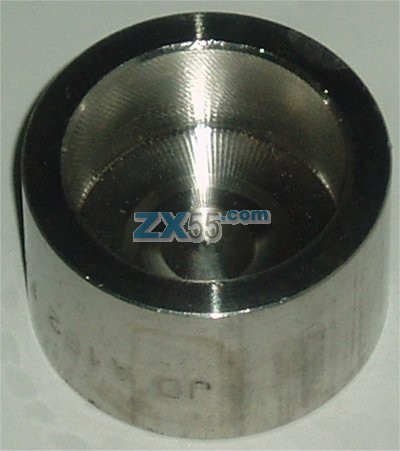

2.00" Socket Weld 3000 PSI End Cap 316L

High Pressure 3000 LB Socket Weld End Cap

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
KAECS050
Quick Find:
ZX4511
Category:
High Pressure Fittings
NPS:
2
Weight:
0.72
Grade:
316 / 316L
Pressure:
3000 LB
Fitting:
End Cap
Product Category:
High Pressure 3000 LB Socket Weld End Cap
Type:
End Cap
Out of Stock @ £ 28.11
Tell a friend about this site or product

High Pressure 3000 LB Socket Weld End Cap

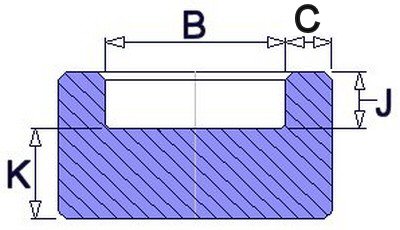

Nominal Pipe Size Max / Ave / Min Socket Bore Diameter Socket Wall Thickness Depth of Socket Cap End Wall Thickness Approximate Weight (Kg)
B C J K
In mm In mm In mm In mm
2" Max 2.43 61.60             0.72
Ave     0.27 6.95       18.00
Min 2.41 61.10 0.24 6.05 16.00 0.62 0.50 12.50
