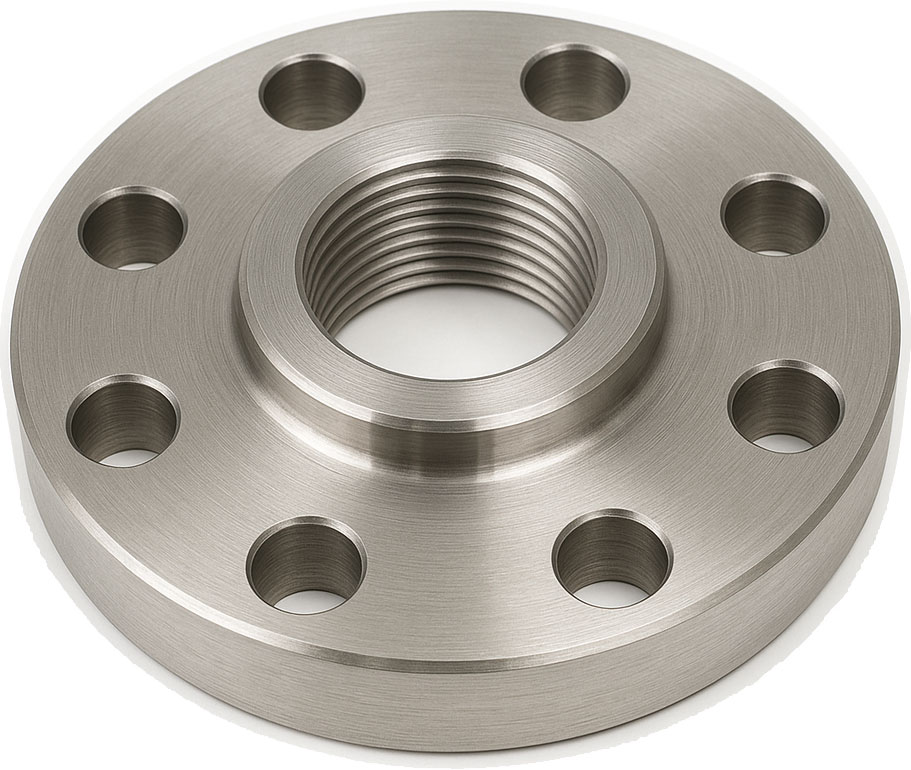

The images displayed are for illustrative purposes only and may not represent the exact product.
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||
| A | C | D | E | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Flange Thickness (min) | Overall Length | Threaded Length (min) | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 2 | 2.38 | 6.50 | 0.88 | 8 | 2.87 | ||||||
| mm | 60.30 | 165.10 | 22.30 | 33.20 | 28.40 | 84.00 | 91.90 | 22.30 | 127.00 | |||
