2.00" ASA 1500 Raised Face Weld Neck SXXS U 304L

300 LB ANSI B16.5 Weld Neck Flange

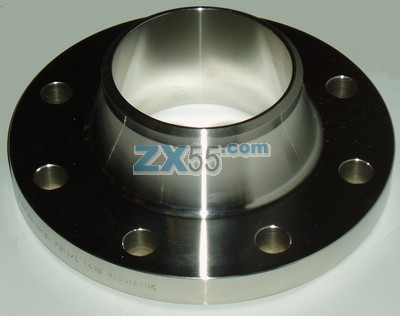

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
ACF2H050-S
Quick Find:
ZX448
Category:
Stainless Steel Flanges
Standard:
ASA (Forged)
Holes:
8
DN:
50
NPS:
2
Weight:
10.80
Grade:
304L
Schedule:
SXXS
Pressure:
1500 LB
Face:
Raised Face
Fitting:
Weld Neck - Raised Face
Product Category:
300 LB ANSI B16.5 Weld Neck Flange
Type:
Weld Neck - Raised Face
Out of Stock @ £ 960.31
Tell a friend about this site or product

300 LB ANSI B16.5 Weld Neck Flange

Pipe Flange Data Hub Data Raised Face Drilling Data Approximate Weight (Kg)
A B C D E F G H I J
Units Nominal Pipe Size Outside Diameter Overall Diameter Inside Diameter Flange Thickness (min) Overall Length Diameter at Weld Bevel Hub Diameter Face Diameter Number of Holes Bolt Hole Diameter PCD: Diameter of Circle of Holes
In 2 2.38 8.50 1.50 1.50 4.00 2.38 4.00 3.62 8 6.50 10.80
mm 60.30 215.80 0.00 38.10 101.60 60.45 104.60 91.90 25.40 165.10
