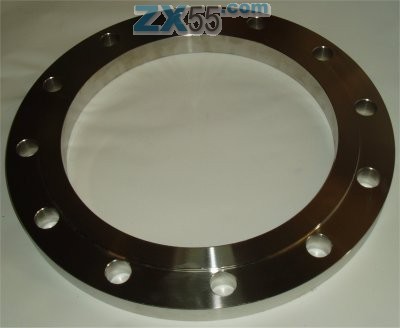

The images displayed are for illustrative purposes only and may not represent the exact product.
| Flange Data | Raised Face | Drilling Data | Approximate Weight (Kg) | ||||||||
| DN | PN | A | B | C | G | X | H | I | J | ||
| Overall Diameter (mm) | Inside Diameter (mm) | Overall Length (mm) | Face Diameter (mm) | Face Height (mm) | Number of Holes | Bolt Hole Diameter (mm) | Bolt Size | PCD: Diameter of Circle of Holes (mm) | |||
| 16 | 580.00 | 411.00 | 32.00 | 490.00 | 4.00 | 16 | 30.00 | M27 | 525.00 | 38.00 | |
