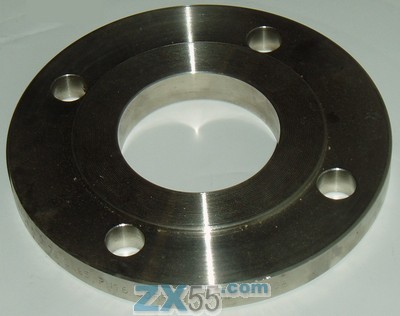

The images displayed are for illustrative purposes only and may not represent the exact product.

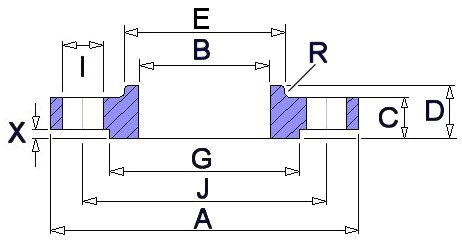

| Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | ||||||||||
| DN | PN | A | C | D | B | E | R | G | X | H | I | J | ||
| Overall Diameter (mm) | Flange Thickness (mm) | Overall Length (mm) | Inside Diameter (mm) | Hub Diameter (mm) | Corner Radi(mm) | Face Diameter (mm) | Face Height (mm) | Number of Holes | Bolt Hole Diameter (mm) | Bolt Size | PCD: Diameter of Circle of Holes (mm) | |||
| 40 | 6 | 130.00 | 14.00 | 26.00 | 49.50 | 70.00 | 5.00 | 80.00 | 14.00 | 4 | 14.00 | M12 | 100.00 | 1.50 |
