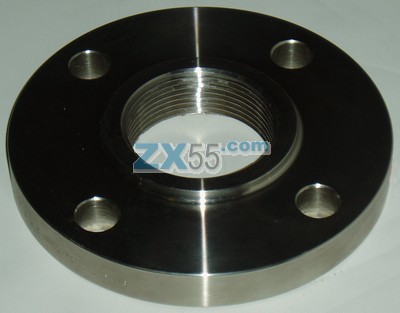

The images displayed are for illustrative purposes only and may not represent the exact product.
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||
| A | C | D | E | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Flange Thickness (min) | Overall Length | Threaded Length (min) | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 1+1/2 | 1.90 | 6.12 | 0.81 | 4 | 2.49 | ||||||
| mm | 48.30 | 155.40 | 20.60 | 30.20 | 22.30 | 69.85 | 73.15 | 20.60 | 114.30 | |||
