1.00" Socket Weld 3000 PSI 90° Elbow 316L

High Pressure 3000 LB 90 Degree Socket Weld Elbow

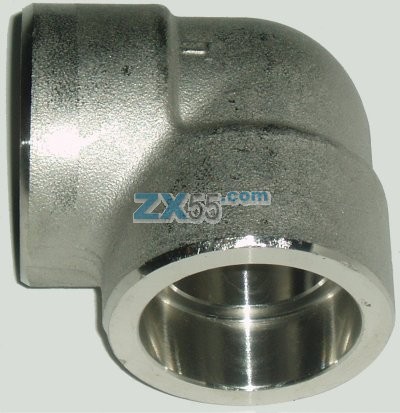

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
KA9LS025
Quick Find:
ZX4456
Category:
High Pressure Fittings
NPS:
1
Weight:
0.50
Grade:
316 / 316L
Pressure:
3000 LB
Fitting:
90 Degree Elbow (Socket Weld)
Product Category:
High Pressure 3000 LB 90 Degree Socket Weld Elbow
Type:
90 Degree Elbow (Socket Weld)
In Stock @ £ 20.51
Tell a friend about this site or product

High Pressure 3000 LB 90 Degree Socket Weld Elbow

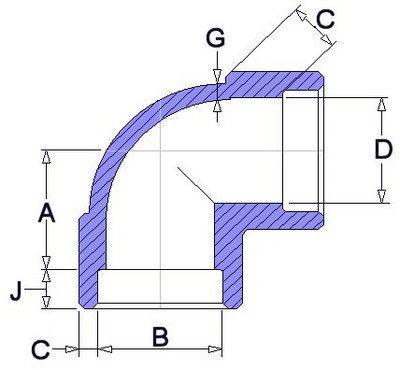

Nominal Pipe Size Max / Ave / Min Centre to Bottom of Socket Socket Bore Diameter Bore Diameter of Fittings Socket Wall Thickness Body Wall Depth of Socket Approximate Weight (Kg)
A B D C G J
In mm In mm In mm In mm In mm In mm
1 Max 0.08 24.00 1.35 34.30 1.08 27.40             0.50
Ave 0.88         0.22 5.70
Min -0.08 20.00 1.33 33.80 1.02 25.90 0.20 5.00 0.18 4.55 13.00 0.50
