1.00" ASA 1500 Unfinished Weld Neck Solid 304L

1500 LB ANSI B16.5 Weld Neck Flange

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
ACF2H025-U-S
Quick Find:
ZX447
Category:
Stainless Steel Flanges
Standard:
ASA (Forged)
Holes:
4
DN:
25
NPS:
1
Weight:
3.74
Grade:
304L
Pressure:
1500 LB
Fitting:
Weld Neck - Raised Face
Product Category:
1500 LB ANSI B16.5 Weld Neck Flange
Type:
Weld Neck - Raised Face
Out of Stock @ £ 507.26
Tell a friend about this site or product

1500 LB ANSI B16.5 Weld Neck Flange

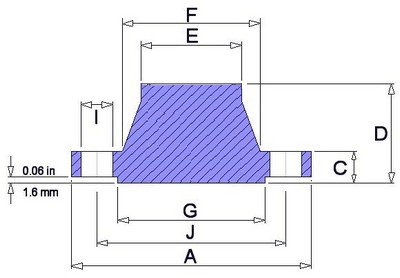

Pipe Flange Data Hub Data Raised Face Drilling Data Approximate Weight (Kg)
A B C D E F G H I J
Units Nominal Pipe Size Outside Diameter Overall Diameter Inside Diameter Flange Thickness (min) Overall Length Diameter at Weld Bevel Hub Diameter Face Diameter Number of Holes Bolt Hole Diameter PCD: Diameter of Circle of Holes
In 1 1.32 5.88 0.00 1.12 2.88 1.32 2.06 2.00 4 4.00 3.74
mm 33.40 149.30 0.00 28.40 73.15 33.50 52.30 50.80 25.40 101.60
