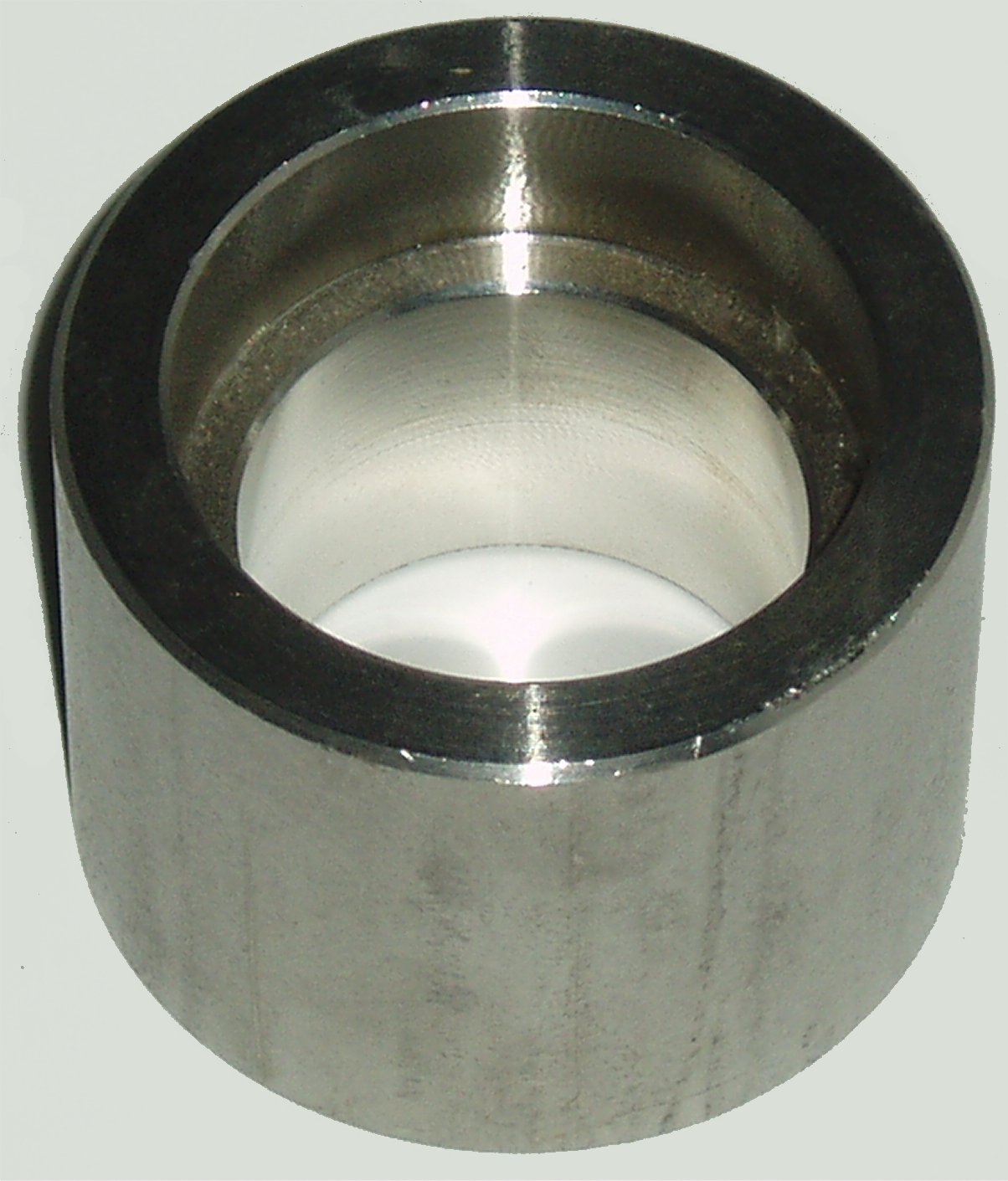

0.75" Socket Weld 3000 PSI Half Coupling 316L

High Pressure 3000 LB Socket Weld Half Coupling

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
KAHCS020
Quick Find:
ZX4588
Category:
High Pressure Fittings
NPS:
0.75
Weight:
0.00
Grade:
316 / 316L
Pressure:
3000 LB
Fitting:
Coupling - Half (Socket Weld)
Product Category:
High Pressure 3000 LB Socket Weld Half Coupling
Type:
Coupling - Half (Socket Weld)
In Stock @ £ 2.51
Tell a friend about this site or product

High Pressure 3000 LB Socket Weld Half Coupling

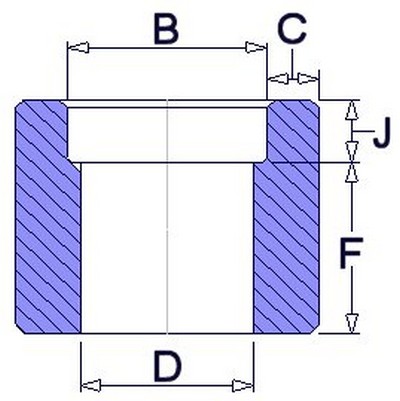

Nominal Pipe Size Max / Ave / Min Socket Bore Diameter Bore Diameter of Fittings Socket Wall Thickness Depth of Socket Laying Lengths Approximate Weight (Kg)
B D C J F
In mm In mm In mm In mm In mm
0.75 Max 1.09 27.55 0.85 21.70         0.06 25.00 0
Ave         0.19 4.90     0.94
Min 1.07 27.05 0.79 20.20 0.17 4.25 13.00 0.50 -0.06 22.00
