0.50" Socket Weld 3000 PSI Equal Cross 316L

High Pressure 3000 LB Socket Weld Equal Cross

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:
KAEXS015
Quick Find:
ZX4534
Category:
High Pressure Fittings
NPS:
0.5
Weight:
0.00
Grade:
316 / 316L
Pressure:
3000 LB
Fitting:
Cross - Equal (Socket Weld)
Product Category:
High Pressure 3000 LB Socket Weld Equal Cross
Type:
Cross - Equal (Socket Weld)
In Stock @ £ 24.50
Tell a friend about this site or product

High Pressure 3000 LB Socket Weld Equal Cross

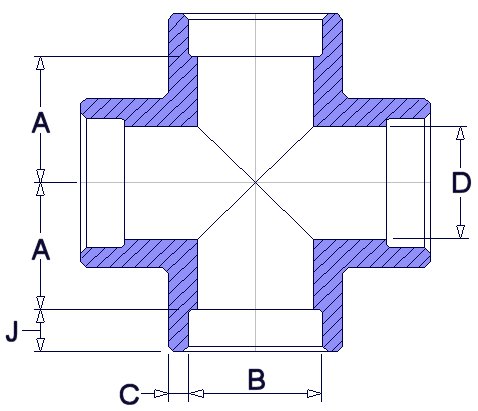

Nominal Pipe Size Max / Ave / Min Centre to Bottom of Socket Socket Bore Diameter Bore Diameter of Fittings Socket Wall Thickness Body Wall Depth of Socket Approximate Weight (Kg)
A B D C G J
In mm In mm In mm In mm In mm In mm
"0.5" Max 0.06 17.00 0.88 22.20 0.65 16.60             0.00
Ave 0.62         0.18 4.65
Min -0.06 14.00 0.86 21.70 0.59 15.00 0.16 4.10 0.15 3.75 10.00 0.38
