0.50" ASA 1500 PSI Raised Face Weld Neck Solid F304L

Name: 0.50" ASA 1500 PSI Raised Face Weld Neck Solid F304L
SKU: ACF2S015
Price: 25.90 GBP
Availability: OutOfStock

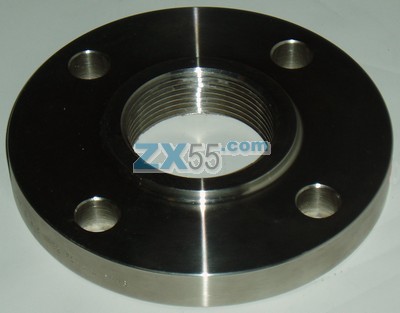

The images displayed are for illustrative purposes only and may not represent the exact product.

Stock Ref:

ACF2S015

Quick Find:

ZX449

Category:

Stainless Steel Flanges

Standard:

ASA (Forged)

Holes:

DN:

NPS:

0.5

Weight:

1.87

Grade:

304L

Pressure:

1500 LB

Face:

Raised Face

Fitting:

Weld Neck - Raised Face

Product Category:

300 LB ANSI B16.5 Weld Neck Flange

Type:

Weld Neck - Raised Face

Out of Stock @ £ 25.90

Pipe			Flange Data				Hub Data		Raised Face	Drilling Data			Approximate Weight (Kg)
Pipe			A	B	C	D	E	F	G	H	I	J
Units	Nominal Pipe Size	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness (min)	Overall Length	Diameter at Weld Bevel	Hub Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	PCD: Diameter of Circle of Holes
In	0.5	0.84	4.75	0.00	0.88	2.38	0.84	1.50	1.38	4		3.25	1.87
mm	0.5	21.30	120.60	0.00	22.30	60.45	21.30	38.10	35.00	4	22.30	82.50	1.87
