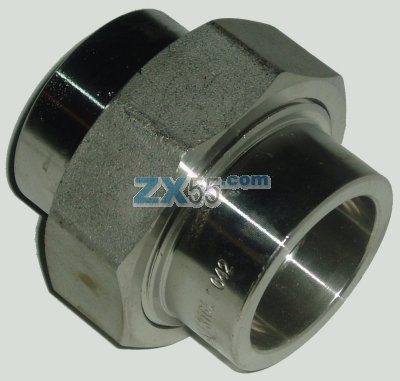

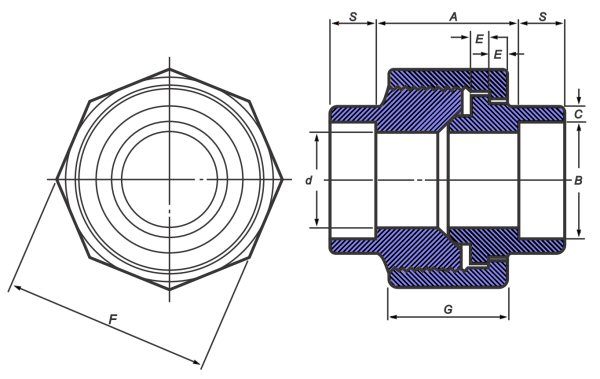

| Nominal Pipe Size | Depth of Socket (min.) | Distance Between Bottoms of Sockets (min.) | Bore Diameter of Sockets (min.) | Socket Wall Thickness (min.) | Bore Diameter of Union | Thickness of Shoulder (min.) | Width A/F of Nut (min.) | Height of Nut (min.) | Approximate Weight (Kg) | ||||||||
| S | A | B | C | D | E | F | G | ||||||||||
| In | mm | In | mm | In | mm | In | mm | In | mm | In | mm | In | mm | In | mm | ||
| 1/4 | 0.39 | 10.00 | 0.67 | 17.00 | 0.56 | 0.56 | 0.13 | 3.30 | 0.36 | 9.20 | 0.13 | 3.20 | 1.26 | 32.00 | 0.71 | 18.00 | 0.15 |
